iQ Radio Sources on the TS.35

Navigating XM, Sirius, AM/FM, Finetune and Internet Radio Sources
		To start playing music on the iQ system using the TS.35 touch panels, you must first choose what room you would like to play music in.  To play music in the current room, press PLAY MUSIC.  To choose another room to play music in choose PICK A ROOM from the toggle list.
		If music is already in progress or something is Now Playing in the room you have chosen, a pop-up will appear where you can choose any of these options: Change Music - Allows you to change the music current playing within the existing source. Change Source - Allows you to change the source to a different source than is what currently playing in the room. Turn Room Off - Allows you to turn off the Room to stop all music and clear the current Now Playing queue.
		After choosing Change Source or once the room has been selected, you then must choose which source to play. The hard drive source can be customized and renamed.  To choose a hard drive source, select one of the sources with the iQ icon to the left.

Navigating XM & Sirius Sources
		To play XM and Sirius Sources, select one of the two radio types from the sources list.  Once selected, the default screen will show what is or was last playing on the system.
		The bottom options on the first page include: Presets - Allows you to choose from a list of six possible presets. Stations - Allows you to access a list of stations available. 123 - Allows you to manually plug in the station information.
		The bottom options on the second and last page include: Station - Skip forward and back numerically through the available stations numbers. Genre - Skip forward and back alphabetically through the available stations.
		By Choosing Presets, a pop-up will appear with all the available presets.  If a preset is not yet configured, it will display as <preset #>.
		By choosing Stations, a list of available stations will appear with the blue play buttons to the right.  The stations are listed by name with a short description below.
		If the blue Play button is pressed, a pop-up will appear with the options to play it now, save it as a preset or close the pop-up which will cancel the action.
		If Save This to a Preset is selected, a pop-up will appear with the list of presets.  You can overwrite an existing preset or select a unused preset by pressing the option on the screen.
		If the numbers icon is selected, a pop-up will appear with a number pad.  This is a quick way to go to a known station number without using presets or navigating the entire station list.

Navigating AM/FM Sources
		To play AM/FM Sources, select the AM/FM source from the sources list.  Once selected, the default screen will show what is or was last playing on the system. The bottom options on the first page include: Presets - Allows you to choose from a list of six possible presets. Seek - Allows you to seek the band for other stations. Lock - Allows you to lock this source so that other rooms cannot control it.
		The bottom option on the second and last page include Change Band where you switch between AM and FM.
		If the numbers icon is selected, a pop-up will appear with a number pad.  This is a quick way to go to a familiar station number.
		If Change Band is selected, a pop-up will appear where you can choose between AM and FM.

Navigating Finetune Sources
		Select the Finetune Source from the sources list.  Once selected, the default screen will give you the options of how you would like to navigate the available Finetune profile database.
		For example, by selecting the profile tags, a list of available of tags associated to the selected profile will appear.
		Once a tag has been selected, it will flip to the Now Playing page where the available tag information for the current playing media will display.
		The bottom options include: Play/Stop - Allows you Play or Stop the playback of the current selection. Next Song - Allows you to jump to the next song in the current media list selection. Load Profile - Allows you to load a different profile. Lock - Allows you to lock this source so that other rooms cannot control it. Find Music - Allows you to select the play options from the default screen to browse the music options including Tags, Playlists and Artists.

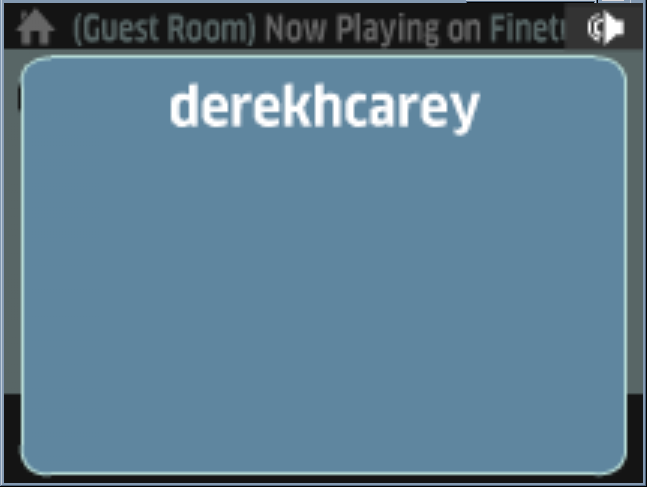

		When Load Profile is selected, a pop-up will appear with the list of available profiles configured in the iQ system's web server.

Navigating Internet Radio Sources
		Select the Internet Radio source from the sources list.  Once selected, the default screen will show what is or was last playing on the system.
		The bottom options include: Play/Stop - Allows you Play or Stop the playback of the current selection. Browse Stations - Allows you to browse the list of available stations. Lock - Allows you to lock this source so that other rooms cannot control it.

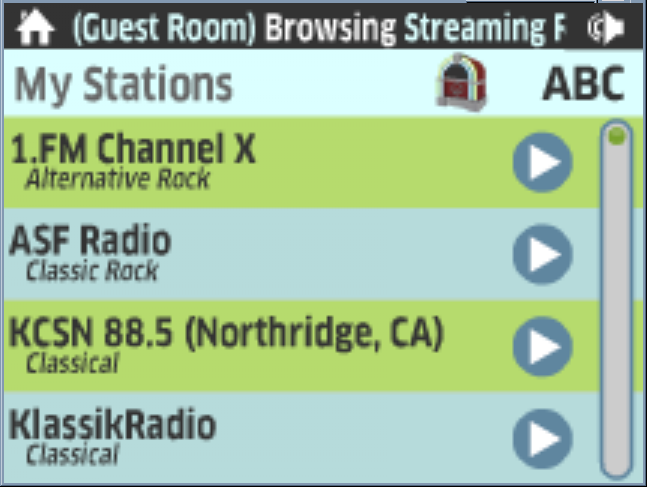

		If Browse Stations is selected, a list of stations configured in the web server of the iQ system will appear.  By pressing the blue  Play button the station will immediately begin playback and the screen will flip to the Now Playing/Internet Radio home screen.
